Sport 175

Sport 175 2025

  • 5.3 m (17’-5”)
  • 699 kg (1542 lb)
  • 150 HP (112 kW)
  • 7 persons
Sport 175 2025 Go to section
Storage compartment Livewell Open space storage compartment Rod storage compartment Fuel tank Ice box Privacy enclosure

Our advantages

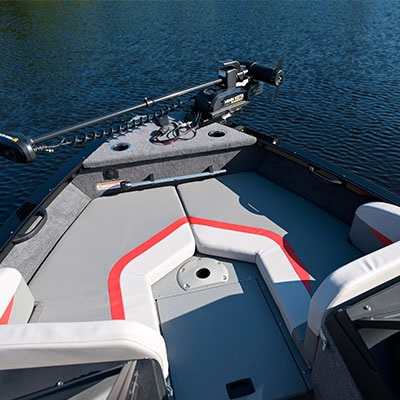

  • Optional bow rider seat cushions
    Optional bow rider seat cushions

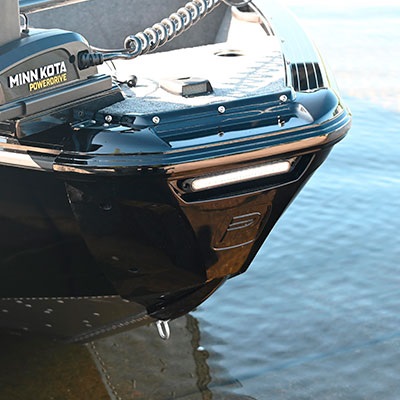

  • Optional LED docking light (included with techno package)
    Optional LED docking light (included with techno package)

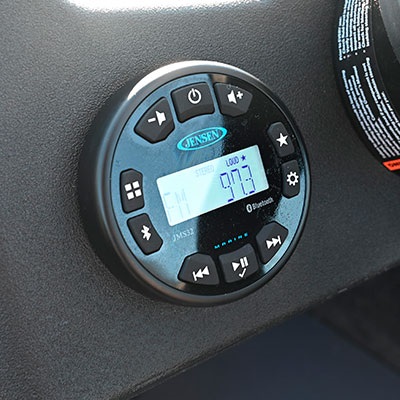

  • Optional Jensen radio system (included with techno package)
    Optional Jensen radio system (included with techno package)

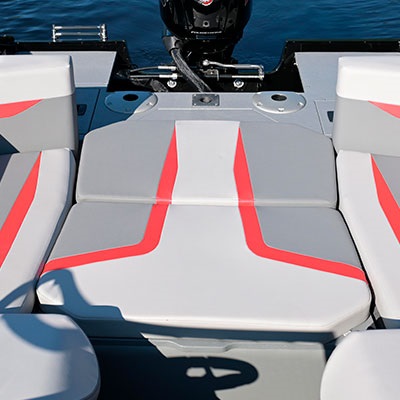

  • Optional stern seat cushion
    Optional stern seat cushion
  • Optional stern seating area with a livewell underneath
    Optional stern seating area with a livewell underneath
  • Telescopic boarding ladder
    Telescopic boarding ladder

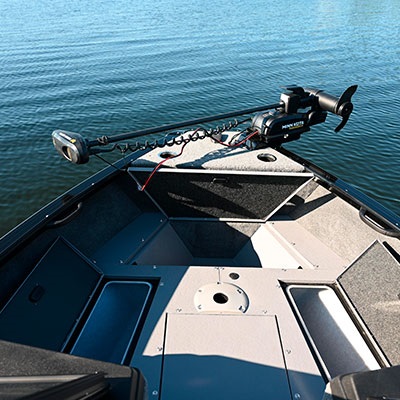

  • Bow platform with storages and livewell
    Bow platform with storages and livewell

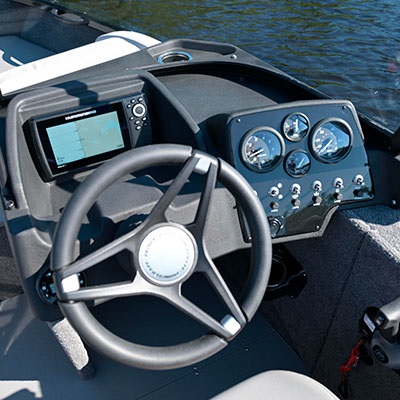

  • Driver helm (shown with optional sonar)
    Driver helm (shown with optional sonar)

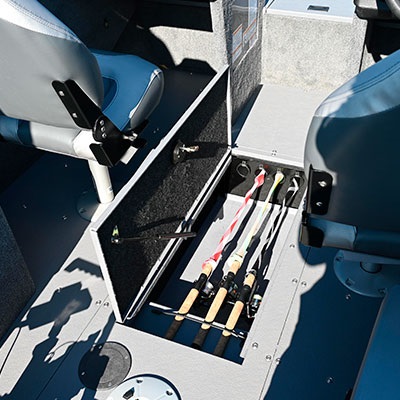

  • In-floor lockable rod organizer for 4 rods
    In-floor lockable rod organizer for 4 rods

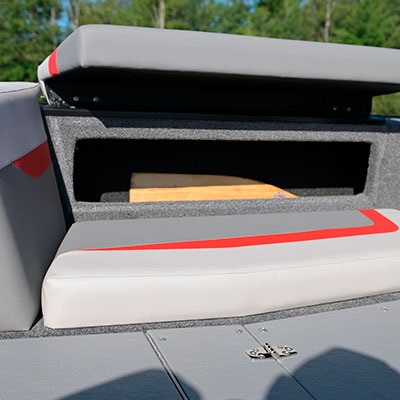

  • Side storages on both sides
    Side storages on both sides

Edition and color choices

Features and options

  • 5052-H36 marine grade aluminum alloy
  • NMMA & Transport Canada certified
  • Exterior urethane paint choices with a glossy finish including decal package
  • Reverse chine hull design
  • Deep self-draining splashwell
  • Twin plating from bow to mid-ship
  • Twin plating at the chine
  • Rigging tube under flooring (from helm to bow)
  • Rigging tube under flooring (from stern to helm)
  • Stainless steel bow and stern eyes
  • 4 chromed cleats
  • BOW RAISED CASTING PLATFORM
  • Anchor storage compartment
  • Deep cycle battery storage compartment
  • Integrated cooler
  • Electric-filled aerated livewell
  • Seat mount floor base
  • Storage compartment
  • AFT RAISED CASTING PLATFORM
  • Battery storage compartment
  • Seat mount floor base
  • Splashwell extension
  • Storage compartment

  • 7-foot rod storage without support
  • In-floor lockable rod organizer for 4 rods
  • 12V or 24V bow trolling motor plug and wiring harness
  • Trolling motor plug with 60 AMP protection
  • Bow mounting trolling motor pad
  • Nets addition under helm and on bow platform
  • Marine grade carpet front deck
  • BOW SPORTFLO ELECTRIC-FILLED AERATED LIVEWELL
  • Bow livewell (30", 64 L/17 U.S. gal.)
  • Overflow
  • Anti-spill cover
  • Insulated lid
  • Protection filter on the filling pump

  • 4 floor seat bases
  • 2 deluxe folding seats with no-pinch hinges
  • Stern loungers with storage

  • Twin consoles with steering system
  • Glove box
  • Black anodized walk-thru tempered glass windshield with door
  • Deluxe dash panel with switches and indicator lights
  • No-FeedBack dual cable steering system
  • Storage under consoles
  • Electric horn, USB plugs and 12V outlet on passenger side

  • Tachometer, speedometer, trim, and fuel gauges

  • All the flat surfaces are covered with anti-skid marine grade vinyl
  • Electric bilge pump
  • 2 bow handles
  • Navigation lights
  • Factory-installed snap fasteners for canvas enclosure and trailer cover options
  • Interior light(s)
  • 5 handles
  • 8 cup holders
  • 3 battery holders
  • Stern telescopic boarding ladder
  • Transducer(s) mounting plate
  • Pressure-treated wood floor covered with marine grade vinyl
  • 2 side storage compartments

  • Standard galvanized bunk style trailer
  • Single axle with hydraulic brakes and swing tongue
  • Carpeted fixed bunks and load guides
  • Built-in steps and composite fenders
  • Sealed hubs and swivel tongue jack
  • 2" ball coupler
  • LED lighting
  • Factory balanced steel wheel
  • 1 114 kg (2 449 lb) carrying capacity
  • Radial tire size : ST205/75R14 C
  • Weight: 228 kg (503 lb)

  • Center line : 5.3 m (17’-5”)
  • Beam : 2.3 m (91”)
  • Chine width : 1.9 m (75")
  • Maximum depth : 1.0 m (39")
  • Approximate draft : 0.3 (12")
  • Approximate draft (with engine) : 0.8 m (30")
  • Transom height : 0.6 m (25")
  • Approximate weight : 699 kg (1542 lb)
  • Dead rise (degres) : 15

  • Maximum HP Capacity : 150 HP (112 kW)
  • Maximum weight capacity : 713 kg (1572 lb)
  • Maximum weight person capacity : 413 kg (910 lb)
  • Maximum person capacity : 6

  • Max. HP cap. : 150 HP (112 kW)
  • Max. weight cap. : 713 kg (1572 lb)
  • Maximum weight person capacity : 413 kg (910 lb)
  • Maximum person capacity : 7

  • Bottom : 2.5 mm (.100")
  • Side : 1.8 mm (.072")

  • Built-in : ≤ 91 L (24 U.S. gal.)

  • 3D Princecraft® black chrome logo…UE

  • Techno Package including 160-watts AM/FM/Bluetooth Jensen® radio with 2 speakers, LED lights in the boat, LED docking light and battery switch

  • Tilt steering with slider for captain's chair…UE
  • SeaStar® hydraulic steering system with tilt wheel and slider for captain's chair...UE (included with 150 HP engine and up)
  • Trolling motor onboard charger for 1 - 12V battery (ProSport 6)
  • Trolling motor onboard charger for 2 - 12V batteries (ProSport 20)
  • MotorGuide® Xi3-55FW wireless trolling motor (12 volts, 54", 55 lb. peak thrust)
  • MotorGuide® Xi3-70FW wireless trolling motor (24 volts, 54", 70 lb. peak thrust)
  • Minn Kota® 55 POWERDRIVE FP trolling motor (12 volts, 54", 55 lb. peak thrust) with bracket
  • Minn Kota® 55 PD MR-54" trolling motor (12 volts, 54", 55 lb. peak thrust)
  • Minn Kota® 70 PD MR-54" trolling motor (24 volts, 54", 70 lb. peak thrust)

  • Removable ski pylon
  • Removable oval table with post
  • Deluxe Seat Package: folding seat, post (11") and seat mount with auto-lock handle (red accent)
  • Deluxe Seat Package: folding seat, post (11") and seat mount with auto-lock handle (blue accent)
  • Bicycle Seat Package: bicycle seat, adjustable post and seat mount with auto-lock handle
  • Bow rider seat cushions (red accent)
  • Stern seat cushion (red accent) (Stern seating module required)
  • Stern seat cushion (blue accent) (Stern seating module required)
  • Bow rider seat cushions (blue accent)

  • Stern seating area with a livewell underneath (must ordered and installed at the factory) (blue accent)
  • Stern seating area with a livewell underneath (must ordered and installed at the factory) (red accent)
  • Stern seating area with a cooler underneath (can be install by the dealer but no livewell system) (blue accent)
  • Stern seating area with a cooler underneath (can be install by the dealer but no livewell system) (red accent)
  • Downrigger supports (black)

  • Totalscan sounder for Simrad® including down imaging and side imaging
  • Multifunction Simrad® NSX7 screen replacing the standard gauges (the bathymetric depth maps are not included)…UE
  • Sonar Humminbird® PiranhaMAX 4
  • Sonar Humminbird® Helix 5 chirp GPS G3 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird® Helix 7 G4 with RAM mount (the bathymetric depth maps are not included)
  • Sonar/ GPS Humminbird® Helix 7 G4 (built-in) (the bathymetric depth maps are not included)
  • Sonar Lowrance® Eagle® 4X
  • Sonar Lowrance® Eagle® 7 Splitshot (the bathymetric depth maps are not included)
  • Sonar / GPS Lowrance® Elite FS 7 (the bathymetric depth maps are not included)
  • Active trim: automatic trim system

  • Trailer cover (black)
  • Converting a bimini top to full top (black)
  • Bimini top on windshield with frame (black)

  • Stainless steel propeller model TempestPlus 14 5/8 x 19 for 150 HP & 150 HP PRO-XS…UE

  • Transom tie down straps…/pair
  • Transom saver motor support bar
  • ST205/75R14 C galvanized spare wheel with 5 lugs and bracket
  • 14" aluminum mag wheels…UE on galvanized model…(2)
  • 14" aluminum mag spare wheel and bracket (excluding nuts)
